Sawmill a Kontakt Hub/Divergent Audio Group New Releases

Kontakt Hub did release a new virtual library and put several on existing libraries on sale.

Sawmill

Sawmill is an instrument inspired by the supersaw sound. In a broad sense, it doesn’t try to emulate the classic supersaw sound but I think it’s interesting how layering detuned saw oscillators turns a static sound into a moving texture. I have been wondering how would it sound if you detuned other parameters, not just pitch. For example, you could also detune filters, LFO frequency, effects etc…

WAVEFORMS

Sawmill is not your standard sample library. It is an advanced and powerful synthesizer with sampled oscillators. There are 32 waveforms, generated mostly with a modular analog system and vintage analog synthesizers.

The samples are fairly long to capture bits of analog drift and tiny electronic imperfections which makes it sound more alive. Each sample has been looped by hand without any additional processing, to preserve as much of the original flavor as reasonably possible.

The waveform selection is focused mainly on different variations of saw, but it also includes other basic shapes, as well as some fancy waveforms you can generate in a modular by mangling the oscillator with rectifiers, ring modulators, inverters and the like, all in the analog domain.

Sawmill includes the nearly complete palette of what Kontakt has to offer in signal processing: full range of filter types, classic effects, different types of envelopes, LFOs with various shapes and frequency modulation.

SEQUENCED MODULATOR

Additionally, there are several innovative functions. There is a sequenced modulator, which is a crossover between a step sequencer and an LFO – you can program a value pattern and shape it to the LFO waveform.

There are six patterns which can be combined and/or patched to different parameters, like pitch or filter cutoff. In fact, any parameter can be automated using MIDI CC.

There is a pitch glide function with adjustable acceleration curve. And then there is the advanced multi-arpeggiator, which is like having a stack of eight arpeggiators, which you can sequence or combine in different ways to create complex note patterns out of a simple chord.

DETAILS

• 7 oscillator stack with all parameters editable individually for each oscillator
• 32 sampled oscillator types, analog, and vintage digital
• 2574 hand looped samples (2.75 GB unpacked – open wav)
• 107 presets in snapshot format
• Multi-arpeggiator with 8 arp patterns to combine
• Step sequencer and LFO crossover modulator with 6 editable waveforms
• A comprehensive set of 32 scales to choose from so the arp can be locked to precise musical notes
• 35 filter types
• 105 Snapshots
• 49 Page User Guide
• Kontakt 5.8.1 or newer (full version) – Not Kontakt Player

The instrument is equipped with 4 LFOs, 5 envelopes, a standard set of Kontakt’s effects (chorus, flanger, phaser, delay) and a full palette of Kontakt’s filters and different distortion types, all of which should by multiplied by 7, as each oscillator has a separate set.

There’s also an advanced multi-arpeggiator, which can run several patterns simultaneously and a rather unique step-sequenced modulator (a step sequencer, where you can define sweep curves between steps). In the end, it can go well beyond the standard supersaw sound.

SOUNDS

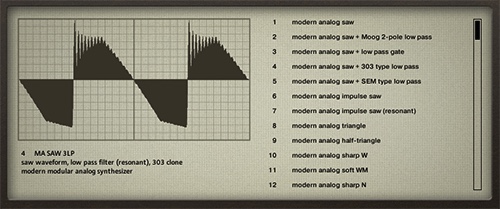

There are 32 oscillator waveforms to choose from. Mostly different flavors of saw and other spiky waveforms as those work best with layering. Oscillator waveforms are tagged by source:

Modern analog – generated with an eurorack modular system, based on Intellijel Dixie and Doepfer A-110-4 oscillators, first being triangle core and the second sine based (sine waveform is not a derived from other waveforms by waveshaping). There are several saw flavors processed by different
filter types, where the cutoff is modulated loosely by pitch CV. Besides regular shapes there are numerous exotic shapes, generated by mixing and
processing regular waveforms, using ring modulators, rectifiers, logic modules etc., all in the analog domain.

Vintage analog – generated with Sequential Circuits Six-Track synthesizer, which has a neat feature of mixing three basic waveforms. There are three basic waveforms: saw, pulse and triangle and two mixed waveforms: saw + triangle and saw + pulse. There are also two versions of saw processed with tuned Moog type low pass filter. Tuned means that I used an oscilloscope to manually tune the cutoff for each semitone, so the waveform shape is consistent over the whole set. This synthesizer is also the source of noise oscillator.

Vintage string machine – that’s a single pulse waveform recorded from1979’s Siel Orchestra, which had a solo mode being basically a single oscillator out. This set doesn’t cover the whole 84 semitones, lowest and highest octaves will be derived by pitching the samples in Kontakt.

Early mini clone – generated with a eurorack oscillator, being the clone of the early design of Minimoog model D using no integrated circuits. This set includes Mini’s trademark ‘sharktooth’ waveform and the only rectangle shape available (not exactly rectangle if you look at it).

Vintage digital – two extra waveforms, generated with Casio CZ-3000, a unique phase distortion synthesizer.
