If you’re looking for the best NEC 230.85 emergency disconnect switches, I recommend options like weatherproof 32Amp units, durable switches from Siemens, and versatile fused disconnects from Supplying Demand. Consider switches with high IP ratings, lockout features, and clear labels to guarantee safety and compliance in all environments. These choices combine visibility, durability, and easy operation to meet NEC standards. Keep exploring, and you’ll discover which system fits your safety needs perfectly.
Key Takeaways
- Look for switches with IP66 or higher ratings for outdoor durability and weather resistance.
- Ensure compliance with NEC 230.85 by choosing clearly labeled, accessible, and lockable disconnect switches.
- Prioritize models with UL, CE, or RoHS certifications for safety and regulatory standards.
- Select switches with appropriate amperage and voltage ratings matching your system for reliable operation.
- Opt for durable, UV-stabilized, and corrosion-resistant enclosures to ensure long-term safety and compliance.

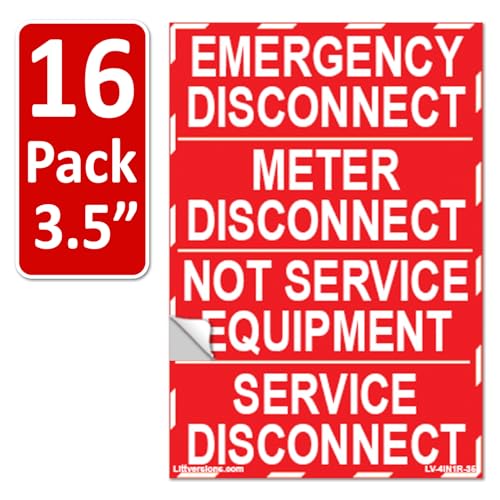

16 Pack NEC Compliant Emergency Service Meter Disconnect Labels (White on Red)
If you’re looking for a reliable way to guarantee safety and compliance in your electrical panels, the Pack NEC Compliant Emergency Service Meter Disconnect Labels (White on Red) are an excellent choice. These 16 labels are designed to meet NEC standards and are suitable for a variety of applications, including load centers, main disconnects, and transformers. Made from durable vinyl with strong adhesive and extra lamination, they resist weather and UV exposure. The bilingual labels (English, French, Spanish) ensure clear communication across diverse environments. Quick to apply and highly visible, they help prevent accidents and ensure proper identification of emergency disconnects.
Best For: electricians, electrical contractors, and safety inspectors seeking reliable, NEC-compliant emergency disconnect labels for various electrical installations.
Pros:
- Bilingual labels (English, French, Spanish) enhance communication in diverse environments
- Durable vinyl material with weather and UV resistance ensures long-lasting visibility
- Strong adhesive and extra lamination make application quick and secure
Cons:
- Limited to 16 labels per pack, which may require additional sets for larger projects
- Labels are only available in white on red, limiting color options for different signage needs
- Slightly higher price point compared to generic labels, given the durability and compliance features
32Amp AC Disconnect Switch (690V, IP66 Waterproof)
The 32Amp AC Disconnect Switch (690V, IP66 Waterproof) stands out as an ideal choice for outdoor electrical systems that demand reliable safety and durability. Its robust design features a rotary handle that’s lockable for added security, making it perfect for motor and system disconnection. With a rated insulation voltage of 690V AC and a load breaking capacity up to ten times the rated current, it handles demanding applications like generators and substations. Its flame-retardant PC material offers high insulation and temperature resistance. Certified by RoHS, TUV, and CE, this switch ensures compliance and long-term performance in harsh environments.
Best For: contractors and engineers needing a durable, outdoor-rated disconnect switch for generators, substations, and power distribution systems requiring reliable safety and high insulation.
Pros:
- IP66 waterproof and corrosion-resistant construction for outdoor use
- Lockable rotary handle enhances safety and security
- High load breaking capacity up to 10 times rated current suitable for demanding applications
Cons:
- May be heavier and bulkier compared to smaller disconnect switches
- Installation requires proper wiring and safety precautions due to high voltage ratings
- Limited to 4 poles, which might not suit all multi-phase system configurations
SIEMENS 2P 60A 240V General Duty Safety Switch Indoor, Non-Fusible
For those seeking a reliable indoor safety switch that combines durability with ease of operation, the Siemens 2P 60A 240V General Duty Safety Switch stands out. It’s designed for moderate duty applications, offering a non-fusible, quick-make/break mechanism with embedded ON/OFF indicators. Its compact, wall-mount design supports 60A, 240V systems, making it ideal for supply circuits under 100,000A fault capacity. The switch features padlocking provisions, durable metal contacts, and UL listing for safety compliance. With simple touch control and high-quality construction, it ensures dependable performance while maintaining a space-efficient profile. Perfect for indoor installations requiring reliable disconnect functionality.
Best For: homeowners, electricians, or maintenance professionals seeking a reliable indoor safety switch for moderate-duty electrical disconnect applications.
Pros:
- Durable metal contact materials ensure long-lasting performance
- Compact, space-saving wall-mount design ideal for indoor installations
- Embedded ON/OFF indicators and padlocking provisions for safety and ease of use
Cons:
- Limited to indoor environments with an IP00 protection rating
- Not suitable for circuits exceeding 100,000A fault capacity without additional fusing
- Only rated for 60A, which may not meet higher current requirements in some applications

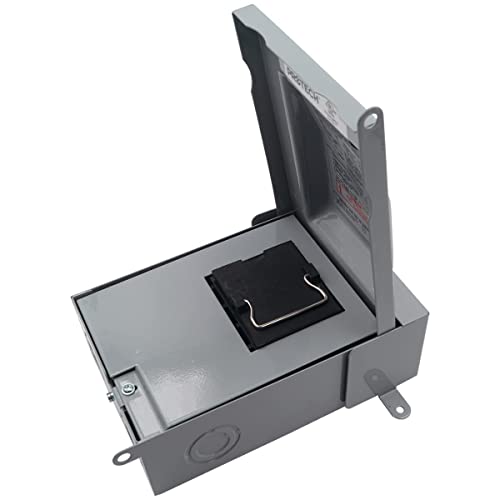

Supplying Demand 84-25175-04 Disconnect Switch Fused 230V 30A Top Open
When selecting an emergency disconnect switch that guarantees safety and compliance, the Supplying Demand 84-25175-04 stands out with its robust fused design and outdoor-rated NEMA 3R enclosure. This switch offers a reliable 30A, 230V capacity, making it suitable for high-voltage applications. Its steel enclosure features multiple knockouts, simplifying installation in various setups. The top-open door provides easy access for maintenance or emergency shutoff, ensuring circuit de-energization when needed. Designed for both indoor and outdoor use, it helps technicians work safely while maintaining compliance with NEC standards. Overall, it’s a dependable choice for safeguarding high-voltage equipment.
Best For: technicians and professionals seeking a reliable, outdoor-rated high-voltage disconnect switch for safe service and maintenance of electrical equipment.
Pros:
- Fused design enhances safety by protecting circuits during operation and maintenance
- Rainproof NEMA 3R enclosure suitable for outdoor installations
- Top-open door provides easy access for quick maintenance and emergency shutoff
Cons:
- May require verification for compatibility with specific equipment or existing setups
- Installation might need additional accessories or mounting hardware not included
- Limited to 30A applications, not suitable for higher current requirements
APIELE 22mm Emergency Push Button Switch (IP67, 440V, 10A, DPST)
If you’re selecting an emergency disconnect switch for outdoor applications, the APIELE 22mm Emergency Push Button Switch stands out due to its robust IP67 waterproof rating and durable construction. It’s designed specifically for harsh environments like charging stations and outdoor setups, ensuring reliable operation even in wet conditions. With a 440V voltage rating and 10A current capacity, it handles demanding applications safely. Its latching, push-lock action with turn-to-release provides a secure and easy operation. Plus, the 3-year warranty offers peace of mind. Overall, this switch combines safety, durability, and compliance, making it an excellent choice for outdoor emergency disconnect needs.
Best For: outdoor installations and harsh environments requiring a waterproof, durable emergency push button switch for safety and control.
Pros:
- IP67 waterproof rating ensures reliable operation in wet and challenging outdoor conditions
- Robust construction with a 3-year warranty provides long-term durability and peace of mind
- Suitable for high-voltage (440V) and high-current (10A) applications, ideal for charging stations and outdoor equipment
Cons:
- Panel mounting requires a 22mm hole, which may need precise installation adjustments
- Button diameter of 40mm might be large for some compact panel designs
- Limited to specific voltage and current ratings; not suitable for applications exceeding 440V or 10A
Emergency Disconnect Switch for Vehicles
Looking for an emergency disconnect switch that guarantees quick and reliable power cut-off in automotive emergencies? The ED250(CZK250) 48V Emergency Disconnecting Switch is designed for that purpose. It’s a push-button switch made from durable ABS, suitable for cars, automobiles, and vehicles. When pressing the button, it immediately cuts power, ensuring safety during emergencies. Its compact, black and red design makes it easy to locate and operate quickly. This switch is a direct replacement for existing safety systems, providing a simple yet effective solution for emergency stopping. Perfect for automotive applications, it enhances safety and helps guarantee compliance with safety standards.
Best For: vehicle owners and automotive safety professionals seeking a reliable, quick-acting emergency disconnect switch for cars and other vehicles.
Pros:
- Easy to operate with a push-button design for immediate power cutoff
- Durable ABS construction ensures longevity and resistance to automotive conditions
- Compact black and red design allows quick identification and installation
Cons:
- Limited to 48V systems; may not be compatible with all vehicle voltages
- Package includes only the switch, other components or wiring are not provided
- Slight color variation possible due to lighting and display differences
Aaon P13760 Disconnect Switch
The Aaon P13760 Disconnect Switch stands out as an excellent choice for those seeking a reliable OEM replacement that prioritizes safety and compliance. Made in the United States, this switch is designed for durability, performance, and peace of mind. Its compact size—4 by 4 by 6 inches—and light weight of just 12.8 ounces make it easy to install and handle. No batteries are needed, simplifying maintenance. Sold through Amazon with a 30-day return guarantee, it also comes with a manufacturer’s warranty. As a genuine OEM part, the P13760 guarantees compatibility and quality, making it a dependable option for ensuring safety and compliance in your electrical system.
Best For: those seeking a durable, reliable OEM disconnect switch for safe and compliant electrical system maintenance and replacement.
Pros:
- Made in the United States ensuring quality and compliance
- Compact and lightweight design for easy installation and handling
- No batteries required, reducing maintenance needs
Cons:
- Limited to specific model compatibility
- No additional features or advanced controls included
- Available only through Amazon, which may limit purchasing options
Factors to Consider When Choosing NEC 230.85 Emergency Disconnect Switch
When selecting an NEC 230.85 emergency disconnect switch, I focus on key factors like compliance standards and environmental durability to guarantee safety and longevity. I also consider electrical ratings for compatibility, as well as installation ease and safety features like lockout/tagout. These points help me choose a switch that’s reliable, compliant, and user-friendly.
Compliance Standards Necessity
Ensuring compliance with NEC 230.85 is essential because it guarantees that emergency disconnect switches will operate effectively when needed most. When switches meet NEC standards, they are designed to be readily accessible, clearly labeled, and installed in visible, unobstructed locations, which is critical during emergencies. Compliance also guarantees the switch meets specific electrical performance and safety criteria, reducing the risk of failure when it matters most. Additionally, adhering to these standards helps avoid violations or penalties by ensuring your setup aligns with local electrical codes and regulations. Proper compliance not only boosts safety but also minimizes liability by ensuring that your emergency disconnect functions correctly, providing peace of mind that you’re prepared for any electrical emergency.
Environmental Durability Factors
Selecting an emergency disconnect switch that can withstand harsh environmental conditions is essential for reliable safety performance. An ideal switch should have an IP66 or higher rating to resist dust, rain, and hose-directed water, ensuring durability in outdoor or industrial settings. Using UV-stabilized, weather-resistant materials prevents deterioration from prolonged sunlight and environmental exposure. The enclosure must be made of flame-retardant, high-temperature resistant plastic or metal to maintain safety standards. Proper sealing and gasket materials are critical to prevent moisture ingress, which could compromise electrical components over time. Additionally, choosing a switch with corrosion-resistant coatings extends its lifespan in humid or corrosive environments. Prioritizing these durability factors guarantees the switch remains functional and safe, even under extreme conditions.
Electrical Rating Compatibility
Choosing the right emergency disconnect switch requires paying close attention to its electrical ratings. The switch must be rated for at least 230V AC and match or exceed the circuit’s amperage, such as 30A or 60A. This guarantees it can safely handle the load without risk of overload or damage. Compliance with NEC 230.85 is essential, confirming the switch can disconnect service safely during emergencies without exceeding its voltage or current limits. Proper compatibility with the wiring and load types is also vital, so the switch supports the specific voltage and current demands of your system. An appropriately rated disconnect switch maintains safety, reliability, and code compliance, allowing for a swift and secure disconnection in critical situations.
Installation Ease & Safety
When installing an NEC 230.85 emergency disconnect switch, ease of setup and safety features should be top priorities. I look for switches with clear, accessible mounting options to ensure quick, secure installation. The wiring terminals should be tool-friendly, making connections straightforward and reducing the risk of electrical hazards. Labels indicating ON and OFF positions, along with color coding like white on red, improve visibility and help prevent accidental operation. Durability matters, so I prefer switches with weather-resistant enclosures to maintain safety in various environments. Most importantly, the switch must comply with NEC 230.85, allowing quick disconnection during emergencies or maintenance without complicated procedures. These considerations help ensure a safe, efficient, and compliant installation process.
Lockout/Tagout Features
Lockout/tagout features are vital for guaranteeing that emergency disconnect switches stay in the off position during maintenance or servicing. These features typically include lockable handles or mechanisms that allow authorized personnel to secure the switch in the de-energized state, preventing accidental energization. Proper lockout/tagout provisions help meet OSHA and NEC safety standards by stopping unauthorized or unintended switch operation. Tamper-resistant devices are essential, guaranteeing only trained workers can remove them and restore power. Incorporating lockout/tagout features enhances safety by providing clear visual confirmation when equipment is de-energized and secured. When choosing an emergency disconnect switch, prioritize those with robust lockout/tagout options to guarantee ongoing safety during servicing and maintenance.
Frequently Asked Questions
What Are the Installation Requirements for NEC 230.85 Switches?
When installing NEC 230.85 switches, I guarantee they are readily accessible, clearly labeled, and located within sight of the main service disconnect. I follow the manufacturer’s instructions and local codes, making sure the switch is capable of disconnecting all power sources. Proper grounding and secure mounting are essential. I also verify the switch’s rating matches the circuit’s load and keep the area free of obstructions for safety.
How Often Should Emergency Disconnect Switches Be Inspected?
Think of emergency disconnect switches like fire alarms—they need regular testing to make certain they’re ready when needed. I inspect mine every six months, following safety guidelines, to make sure they’re functioning properly. The NEC recommends inspections at least annually, but more frequent checks are wise, especially in busy or critical environments. Staying vigilant helps prevent failures during emergencies, keeping everyone safe and compliant.
Are There Specific Labeling Standards for Emergency Disconnects?
Yes, there are specific labeling standards for emergency disconnect switches. I follow the NEC requirements, which specify that disconnects must be clearly labeled with durable, conspicuous signs indicating their purpose, such as “Emergency Disconnect” or similar wording. The labels should be visible from a distance and resistant to environmental factors. Proper labeling guarantees quick identification during emergencies, enhancing safety and compliance.
Can Emergency Disconnect Switches Be Used in Outdoor Environments?
Yes, emergency disconnect switches can be used outdoors, but they must be rated for outdoor use and weather-resistant. I always make sure they have proper enclosures to protect against moisture, dust, and corrosion. It’s essential to follow manufacturer guidelines and NEC requirements to guarantee safety and compliance. Proper installation and labeling are key, so I double-check these aspects to make certain the disconnect switch functions reliably in outdoor environments.
What Maintenance Procedures Are Recommended for These Switches?
I recommend inspecting emergency disconnect switches regularly for signs of corrosion, damage, or wear. Make sure all connections are tight and clean, and test the switch functionality monthly to verify it operates correctly in an emergency. Keep the area around the switch clear for quick access, and follow manufacturer guidelines for specific maintenance tasks. Consistent upkeep helps ensure safety and compliance, especially in outdoor or harsh environments.
Conclusion
Choosing the right NEC 230.85 emergency disconnect switch is like selecting a steadfast lighthouse amid turbulent seas—your beacon for safety and compliance. Each option shines with its unique strength, guiding you toward secure, code-compliant operations. Remember, the right switch isn’t just a device; it’s the guardian watching over your electrical journey. Make your choice wisely, and let safety be the steady anchor in your electrical voyage.
